Hamamatsu L9455 and L9456 Compact 5W Xenon Flash Lamp Module

  • Hamamatsu L9455 and L9456 Series
Price:
$764.97
Brand:
Weight:
0.40 LBS
Availability:
4-6 Weeks
Shipping:
Calculated at checkout
Quantity:


Product Description

Hamamatsu L9455 and L 9456 series are compact 5W xenon flash lamp modules contains a 5W xenon flash lamp along with its power supply and trigger socket. Up to 5W of energy can be input, which is the maximum among lamp modules of this size. These xenon flash lamp modules also deliver high stability and long service life, making them ideal as a light source for water quality and atmospheric analyzers.

Applications

  • Blood analyzers
  • Air pollution analysis
  • Microplate readers
  • Fluorescence spectrophotometers

Features

  • 1.5mm and 3.0mm Arc size,

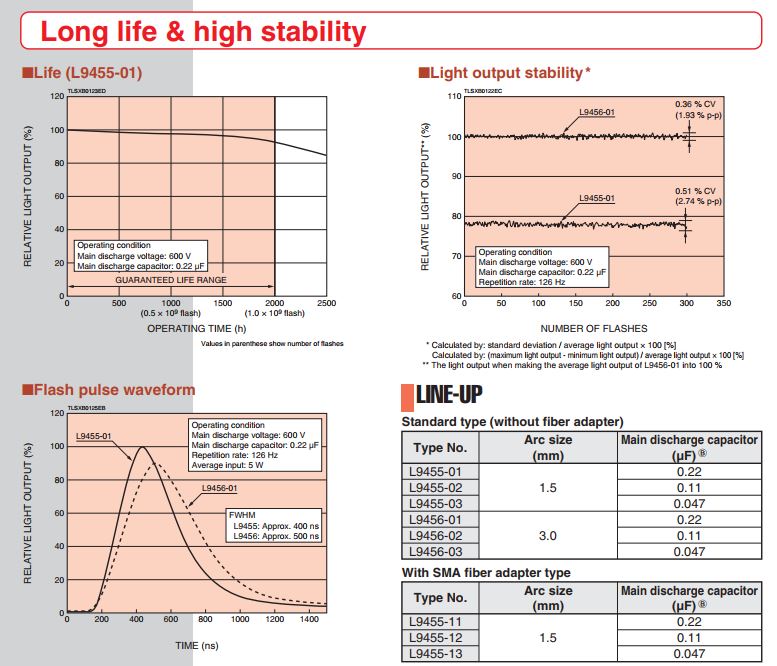

  • High stability: 1.5 % CV or less,
  • Long life: 1×10^9 flashes or more,
  • Compact size,
  • Repetitive emission frequency: 530 Hz Max.

Specifications

Parameter

Description / Value

Unit

Type Number

L9455 Series | L9456 Series



Arc size

1.5 | 3.0

mm

Type

Side-on

Spectral range of light output

UV glass

185 to 2000



nm

Main discharge voltage variable range1

400 to 600

V

Main discharge capacitor2

0.047 | 0.11 | 0.22 | 0.28

µF

Maximum average input (continuous)3

5

W

Light output stability (Max.)

2.05 | 1.55

% CV

Guaranteed life6

1x10^9

flashes

Input voltage range

11 to 28

V

Input current

1

A

Inrush current

4

A

Trigger input

Rectangular wave  5 V to 10 V; pulse width must be 10 µs or more.

Trigger input impedance

330

W

Cooling method6

Not required

Weight (standard type: L9455-01)

Approx. 170

g

Operating ambient temperature

0 to +40

°C

Storage ambient temperature

-40 to +90

°C

Storage ambient humidity

Below 95

% RH

Electromagnetic environmental compatibility

Without noise filter

EN61326-1:  2006 Group 1, Class A

With noise filter

EN61326-1:  2006 Group 1, Class B

1. Adjustable with internal trimmer potentiometer or external voltage supply of 3.2 V to 4.8 V. 2. Adjusted at factory prior to shipment.

3. Maximum average input (continuous) W is given by: W=E × f [W], where E is the maximum input energy (J) and f is the repetition frequency (Hz).

4. Maximum average input energy (per flash) E is given by: E=1/2 CV[J], where V is the main discharge voltage (V) and the main discharge capacitance (F) for C.

5. Calculated by: standard deviation / average light output × 100 [%] 6. At 5-watt operation

7. Cooling is required if temperature on the lamp module exceeds 50 °C during operation.
